Platform ID = A301
This is the most recent Hardware Datasheet specifications for the F5® VELOS BX520 Blade Hardware.
If you are looking for prices or part numbers, please follow this
link.
Below you will find details on memory, hard drive size, processors, throughput, power stats and more.
Contact WorldTech IT for discounts, special pricing & a free environment review.
Hardware

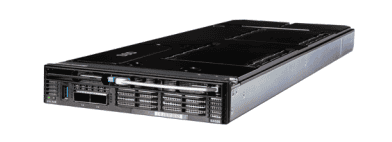

Hardware Datasheet Specifications for VELOS BX520
| SPECIFICATIONS | VELOS BX520 |
|---|---|
| Intelligent Traffic Processing (*1): | L4/L7 throughput 170/170 Gbps |
| Intelligent Traffic Processing (*1): | 6.0M L7 (inf-inf) requests per second |
| Intelligent Traffic Processing (*1): | 2.4M L4 connections per second |
| Intelligent Traffic Processing (*1): | Max hardware compression 100 Gbps |
| Intelligent Traffic Processing (*1): | SSL bulk throughput 100G |
| Intelligent Traffic Processing (*1): | Maximum SSL TPS 200,000 (RSA 2K Keys) |
| Intelligent Traffic Processing (*1): | 140,000 (ECDHE P-256-ECDSA) |
| Intelligent Traffic Processing (*1): | 110,000 (ECDHE P-256-RSA-2K) |
| Virtualization (vCPUs): – Processors – Memory | 28-core 56 vCPU Multitenancy support: up to 46 vCPU available to user Supported tenant options: (1–46 vCPUs) |
| Virtualization (vCPUs): – Processors – Memory | Dual 14-core Intel Xeon CPUs (56 hyperthreaded logical cores) |
| Virtualization (vCPUs): – Processors – Memory | 256 GB DDR4 RAM |
| Hard Drive Capacity: | 2x 960GB M.2 NVMe SSDs (RAID 1, 800 GB user capacity) |
| Network Interfaces: | 4x QSFP28 ports supporting 100G and 40G Ethernet |
| Power Consumption: | Please refer to Platform Guide: VELOS CX Series for the latest specific power ratings |
| Weight: | 11.5 pounds (5.2 kg) |
| Width and Dimensions: | Half-width Dimensions: 22.64″ L (575 mm), 8.03″ W (204 mm), 1.59″ H (40.3 mm) |
| Hardware Compression and SSL: | Integrated Intel Quick Assist Gen 3 |
| Front Panel and Backplane Data Path: | 100% FPGA |
| Management Interfaces: | 1x USB 3.0 |
| AOM: | F5 LOP (Lights-Out Processor) |
| Trusted Platform Module (TPM): | TPM 2.0 |
| NEBS: | Yes (with DC NEBS chassis) |
| Field Serviceable Components: | None |
Compatible BIG-IP Software Version Matrix for VELOS Blades BX520
For a complete list of all BIG-IP release notes and release dates, please follow the
link.
For a table with all compatible hardware and software versions, please follow the
link.
| F5OS-C controller supported versions | F5OS-C controller supported versions | F5OS-C partition supported versions | F5OS-C partition supported versions | Supported tenant software versions | Supported tenant software versions | Supported tenant software versions | Supported tenant software versions | Supported tenant software versions | AOM |
|---|---|---|---|---|---|---|---|---|---|
| F5OS-C controller supported versions | F5OS-C controller supported versions | F5OS-C partition supported versions | F5OS-C partition supported versions | BIG-IP Next 20.x | BIG-IP 17.x | 16.x | 15.x | 14.x | AOM |
| Base OS | Service | Base OS | Service | AOM | |||||
| 1.5.0 | 1.5.0 | 1.5.0 | 1.5.0 | None | 17.1.0 – 17.1.1 | None | 15.1.4 – 15.1.10 | 14.1.4.1 – 14.1.5 | 2.01.1228.0.1 (SX410) 2.00.1123.0.1 (BX520) |
| 1.5.1 | 1.5.1 | 1.5.1 | 1.5.1 | None | 17.1.0 – 17.1.1 | None | 15.1.4 – 15.1.10 | 14.1.4.1 – 14.1.5 | 2.01.1228.0.1 (SX410) 2.00.1123.0.1 (BX520) |
| 1.6.0 | 1.6.0 | 1.6.0 | 1.6.0 | None | 17.1.0 – 17.1.1 | None | 15.1.4 – 15.1.10 | 14.1.4.1 – 14.1.5 | 2.01.1228.0.1 (SX410) 2.00.1123.0.1 (BX520) |
| 1.6.1 | 1.6.1 | 1.6.1 | 1.6.1 | 20.0.1 | 17.1.0 – 17.1.1 | None | 15.1.4 – 15.1.10 | 14.1.4.1 – 14.1.5 | 2.01.1228.0.1 (SX410) 2.00.1123.0.1 (BX520) |
