Home » F5 rSeries r5920-DF and r10920-DF

As IT environments continue to grow more complex in the modern digital landscape, ensuring the security and reliability of applications is paramount. Organizations, particularly those handling sensitive data or operating in regulated industries, need robust solutions that meet stringent security standards. The FIPS-ready F5 rSeries r5920-DF and r10920-DF empower organizations with compliant and secure application delivery.

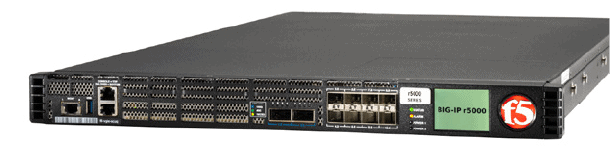

r5920-DF Platform ID = C129

f5 big ip r5920- hardware datasheet

r10920-DF Platform ID = C129

f5 big ip r10920-df hardware datasheet

The F5 rSeries r5920-DF and r10920-DF

The new r5920-DF and r10920-DF appliances are FIPS-ready, underscoring F5’s commitment to providing secure, robust, and reliable solutions. These powerful platforms deliver top-tier application services while meeting stringent security standards. This approach allows organizations to ensure that their critical data and applications are secure, performing optimally, and available at all times.

  • Secure Encryption: FIPS-compliant algorithms and the Marvell NITROX III CNN35XX-NFBE HSM implemented within the F5 rSeries ensure the confidentiality and integrity of sensitive data. This is particularly crucial when handling classified or regulated information, such as personally identifiable information (PII) or financial data.
  • Trusted Authentication: FIPS compliance requires robust authentication mechanisms, such as strong multifactor authentication and secure key management. The r5920-DF and r10920-DF enable organizations to enforce stringent access controls, ensuring that only authorized individuals can interact with applications and services.
  • Regulatory Compliance: Many industries and government agencies have specific regulatory requirements, such as HIPAA (Health Insurance Portability and Accountability Act) in healthcare or PCI DSS (Payment Card Industry Data Security Standard) in the financial sector. The FIPS-ready r5920-DF and r10920-DF help organizations meet these regulations and demonstrate adherence to industry best practices.
  • Advanced Threat Protection: F5’s rSeries provides the highest reliability, security, and access control for your critical applications with advanced network and application protections and mitigates attacks across your threat landscape.
  • Scalability and Performance: Beyond its remarkable security features, the F5 rSeries shines in scalability and performance. Its highly efficient architecture can handle high volumes of traffic while ensuring optimal application performance and scalability through more FPGAs and ECC ciphers, increased CPU utilization, and a multi-tenancy architecture to consolidate application services on one platform. With F5 rSeries, you can plan for future performance needs today and then scale to meet your capacity requirements as they grow.

Whether it’s a government agency, a contractor, or a private sector business handling sensitive data, the F5 rSeries offers a cutting-edge solution that can keep up with evolving security needs and performance demands. This blend of security and scalability makes the F5 rSeries r5920-DF and r10920-DF a remarkable choice in today’s ever-expanding digital landscape while reinforcing F5’s commitment to delivering high-performance, scalable, and secure ADCs.

This is the most recent Hardware Datasheet specifications for the F5® BIG-IP® r5920-DF – r10920-DF rSeries® platform. If you are looking for prices or part numbers, please follow this link. Below you will find details on memory, hard drive size, processors, throughput, power stats and more. Contact WorldTech IT for discounts, special pricing & a free environment review.

SpecificationsR10920-DFR5920-DF
Intelligent Traffic Processing:L7 requests per second: 6.6M
L4 connections per second: 2.5M
L4 HTTP requests per second: 37M Maximum
L4 concurrent connections: 180M
Throughput: 190 Gbps/190 Gbps L4/L7		L7 requests per second: 4.3M
L4 connections per second: 1.8M
L4 HTTP requests per second: 18M
Maximum L4 concurrent connections: 100M
Throughput: 95 Gbps/95 Gbps L4/L7
Hardware Offload SSL/TLS:200K TPS (RSA 2k keys)
140K TPS (ECDHE-ECDSA P-256)
110K TPS (ECDHE P-256-RSA 2k)
95 Gbps bulk encryption		100K TPS (RSA 2k keys)
70K TPS (ECDHE-ECDSA P-256)
55K TPS (ECDHE P-256-RSA-2k)
50 Gbps bulk encryption
FIPS SSL:35K TPS (RSA-2K FIPS 140-3)
8K TPS (ECDHE P-256-ECDSA FIPS 140-3)
33K TPS (ECDHE P-256-RSA-2K FIPS 140-3)		17K TPS (RSA-2K FIPS 140-3)
4K TPS (ECDHE P-256-ECDSA FIPS 140-3)
17K TPS (ECDHE P-256-RSA-2K FIPS 140-3)
Hardware Compression:90 Gbps50 Gbps
Hardware DDoS Protection:160M SYN Cookies per second80M SYN Cookies per second
Software Architecture:64-bit TMOS
64-bit F5OS		64-bit TMOS
64-bit F5OS
Multi-Tenancy:Up to 36Up to 26
Processor:12 vCPU’s Reserved for F5OS, and 36 vCPU’s Available for Tenancy.6 vCPU’s Reserved for F5OS, and 26 vCPU’s Available for Tenancy
Memory:256 GB DDR128 GB DDR
Hard Drive:2x 1TB U.2 Enterprise-class SSD (RAID 1 Mirrored)2x 1TB U.2 Enterprise-class SSD (RAID 1 Mirrored)
Management Ports:1x 1000BASE-T
1x USB 3.0,
1x serial console		1x 1000BASE-T,
1x USB 3.0,
1x serial console
100/40 Gigabit Fiber Ports:4 x 100G/40G QSFP28/QSFP+ ports2 x 100G/40G QSFP28/QSFP+ ports
25/10 Gigabit Fiber Ports:16 x 25G/10G SFP28/SFP+ ports8 x 25G/10G SFP28/SFP+ ports
Power Supply:2 x 1200 W 100-240 VAC (+/- 10%) AUTO Switching Platinum, Dual DC PSU Optional1 x 650 W 100-240 VAC (+/- 10%) AUTO Switching Platinum, Dual DC PSU Optional
Typical Consumption:680W (dual power supply, 48V DC or 110V AC input)425W (single power supply, 48V DC or 110V AC input)
Input Voltage / Typical Heat
generated:		Dual Power supply
110 VAC input: 2325 BTU/hour
230 VAC input: 2290 BTU/hour		Single Power supply
110 VAC input: 1455 BTU/hour
230 VAC input: 1420 BTU/hour
Dimensions:H: 1.72 inches (4.37 cm) x W: 17.1 inches (44.20 cm) x D: 30.6 inches (77.72 cm) (per unit) 1U industry standard rack-mount chassisH: 1.72 inches (4.37 cm) x W: 17.1 inches (44.20 cm) x D: 30.6 inches (77.72 cm) (per unit) 1U industry standard rack-mount chassis
Weight:36.0 pounds (16.33 kg) with two power supply units (PSUs) (per unit)36.0 pounds (16.33 kg) with two power supply units (PSUs) (per unit)
Operating Temperature:32 to 104°F (0 to 40°C)32 to 104°F (0 to 40°C)
Operational Relative Humidity:5% to 85% (40 C) non-condensing5% to 85% (40 C) non-condensing
Hardware Certification Model:r10000Fr5000F
Safety Agency Approval:ANSI/UL 60950-1-2014
CSA 60950-1-07, including A1:2011+A2:2014 IEC 60950-1:2005, A1:2009+A2:2013
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
IEC 62368-1:2014 (Second Edition) EN 62368-1:2014+A11:2017
CSA C22.2 No. 62368-1-14, UL 62368-1, 2nd edition		ANSI/UL 60950-1-2014
CSA 60950-1-07, including A1:2011+A2:2014 IEC 60950-1:2005, A1:2009+A2:2013
EN 60950 1:2006+A11:2009+A1:2010+A12:2011+A2:2013
IEC 62368-1:2014 (Second Edition) EN 62368-1:2014+A11:2017
CSA C22.2 No. 62368-1-14, UL 62368-1, 2nd edition
Certifications / Susceptibility
Standards:		FCC Class A (Part 15), IC Class A; VCCI Class A
EN 55032:2012/AC:2013 Class A
EN 55035:2017
EN 300 386 V1.6.1 (2012)		FCC Class A (Part 15), IC Class A; VCCI Class A
EN 55032:2012/AC:2013 Class A
EN 55035:2017
EN 300 386 V1.6.1 (2012)

*Requires using adjacent QSFP28 ports at the same speed (100G/100G or 40G/40G). 100/40G ports do not support breakout cables.
Notes: Performance-related numbers are based on local traffic management services only and are subject to change. Only optics provided by F5 are supported.

Compatible BIG-IP Software Version Matrix for BIG-IP r5920-DF r10920-DF

For a complete list of all BIG-IP release notes and release dates, please follow this link.
For a table with all compatible hardware and software versions, please follow this link.

F5OS-A supported versions Supported BIG-IP tenant software versions AOM
Base OS Service 17.x 16.x 15.x 14.x
1.5.0 1.5.0 17.1.0 – 17.1.1 None None None 2.00.292.0.1
1.5.1 1.5.1 17.1.0 – 17.1.1 None None None
